I have an example of this board in Eurocard format.

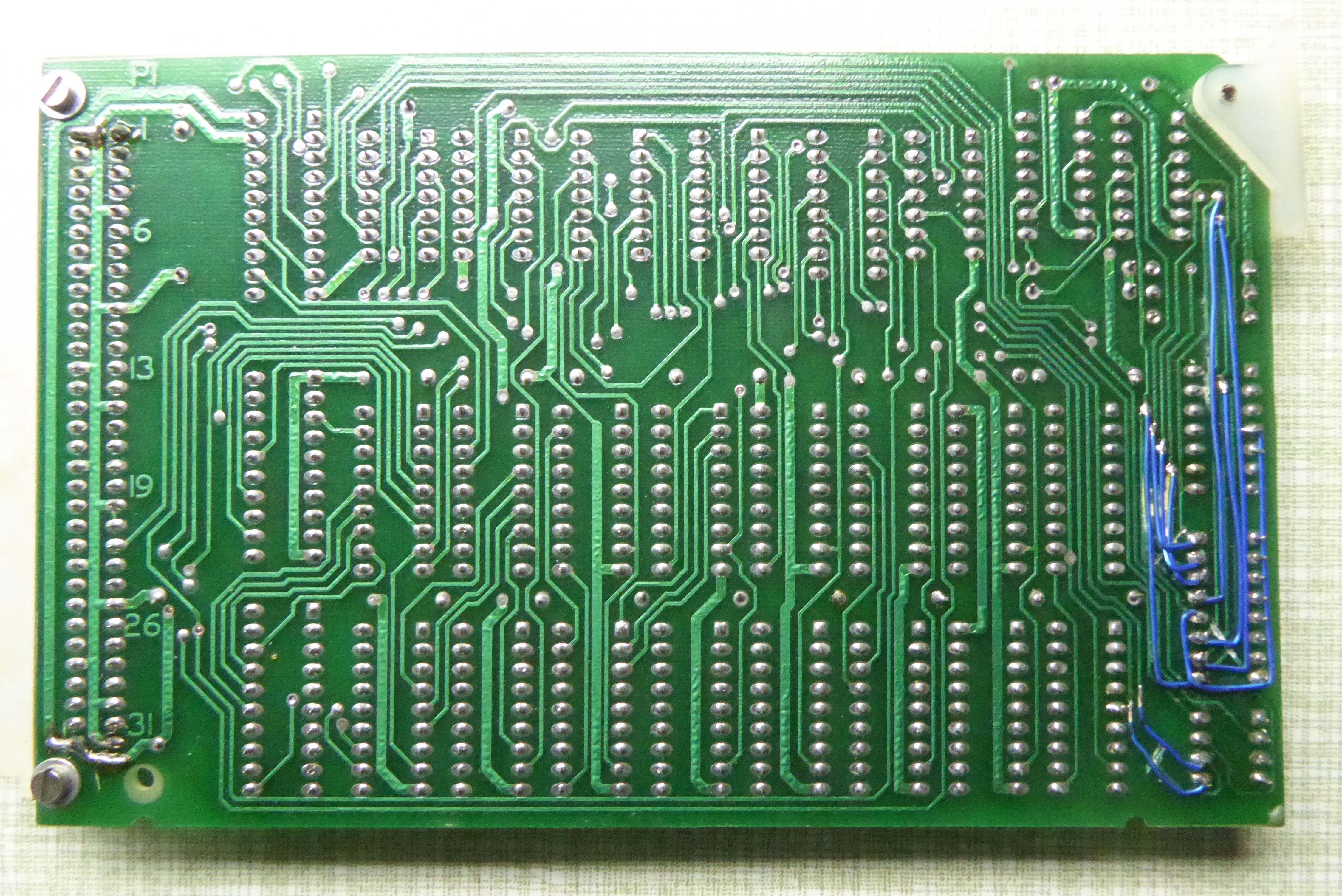

Interestingly my board has had wire modifications made to the rear of the board around the configuration switches.
I planned to remove these and restore the board to original however I checked the mods against the schematic and found that they are correct, so is this an early version board which Rockwell made mods to ?
Here are copies of the Data Sheets and the User Manual:
Board Configuration
The board has a two banks of DIL switches for configuration.
An 8-way DIL switch (S1) selects the base address of each of the two sections of 4K RAM, a 4-way DIL switch (S2) selects the Bank configuration and allows the RAM to be write protected.
| Switch No. | Function |
| S1 1 to 4 | Base Address of section 1 |
| S1 5 to 8 | Base Address of section 2 |
| S2-1 | Selects Bank 1 (CLOSED) or Bank 0 (OPEN) Bank |
| S2-1 | Selects both Bank 0 and 1
(OPEN) or only Bank 0 or 1 (CLOSED) |
| S2-3 | Write Protect section 1 (CLOSED) |
| S2-4 | Write Protect section 2 (CLOSED) |
| Base Address | S1-4 / S1/8 | S1-3 / S1/7 | S1-2 / S1-6 | S1-1 / S1-5 |
| 0000 | OPEN | OPEN | OPEN | OPEN |
| 1000 | OPEN | OPEN | OPEN | CLOSED |
| 2000 | OPEN | OPEN | CLOSED | OPEN |
| 3000 | OPEN | OPEN | CLOSED | CLOSED |
| 4000 | OPEN | CLOSED | OPEN | OPEN |
| 5000 | OPEN | CLOSED | OPEN | CLOSED |
| 6000 | OPEN | CLOSED | CLOSED | OPEN |
| 7000 | OPEN | CLOSED | CLOSED | CLOSED |
| 8000 | CLOSED | OPEN | OPEN | OPEN |
| 9000 | CLOSED | OPEN | OPEN | CLOSED |
| A000 | CLOSED | OPEN | CLOSED | OPEN |
| B000 | CLOSED | OPEN | CLOSED | CLOSED |
| C000 | CLOSED | CLOSED | OPEN | OPEN |
| D000 | CLOSED | CLOSED | OPEN | CLOSED |
| E000 | CLOSED | CLOSED | CLOSED | OPEN |
| F000 | CLOSED | CLOSED | CLOSED | CLOSED |
