Replica 6502 CPU Board

Replica 6502 CPU Board

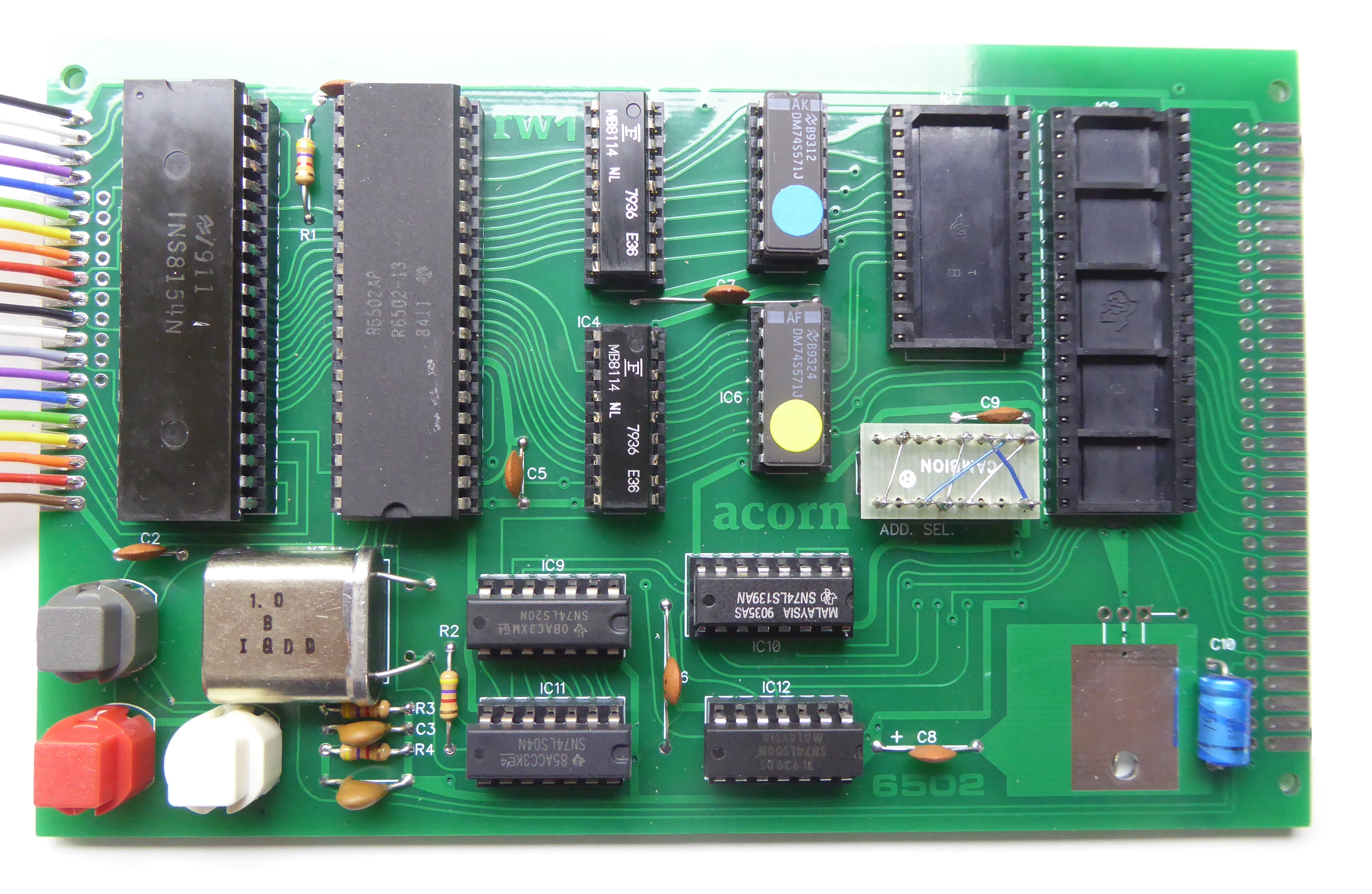

This is my replica of an original Acorn 6502 CPU Board as used in the System 1, it is based on the Issue 3 PCB.

When building the board take care to fit the CPU the correct way around, its backwards with respect to all the other ICs !

Sometimes the crystal doesn't reliably start-up, the fix is to add a few pF across the crystal, try 4p7 ?
