Atom Riser Card

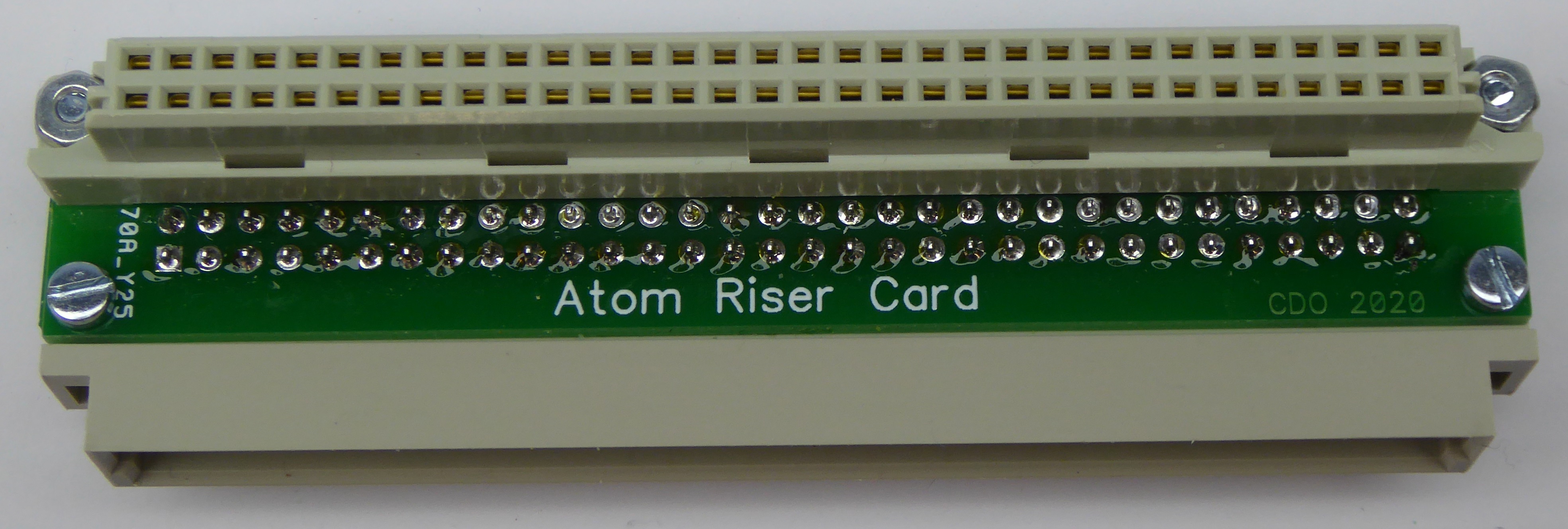

The Atom Riser Card allows the fitting of an Acorn System Eurocard inside the Atom case, the Atom main board needs to be fitted with a 64-way straight socket in position PL7.

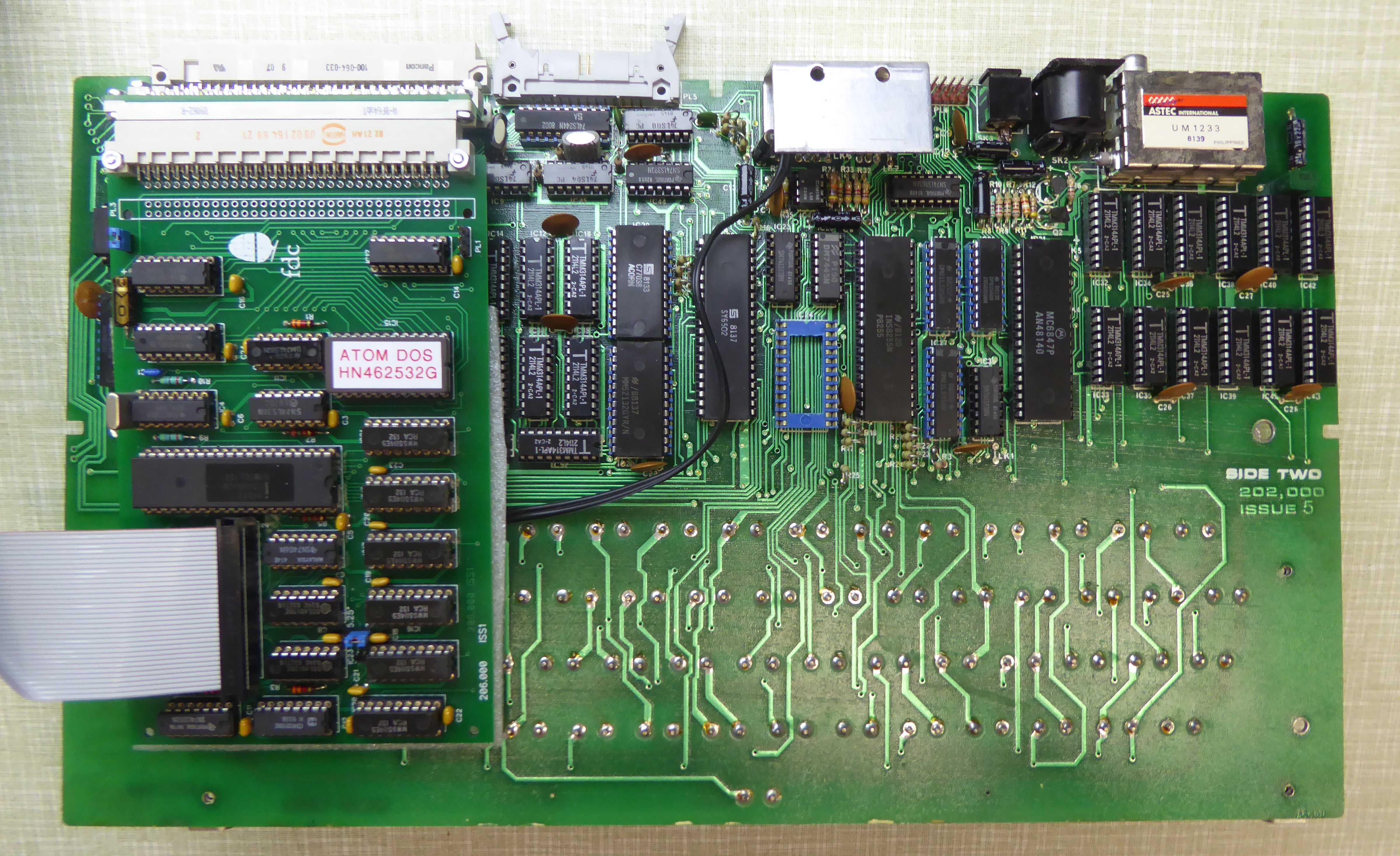

The following photo shows the Riser Card installed with a Floppy Disk Controller attached.

Schematic

• Atom Riser Card Schematic

Bill Of Materials

• Atom Riser Card BOM

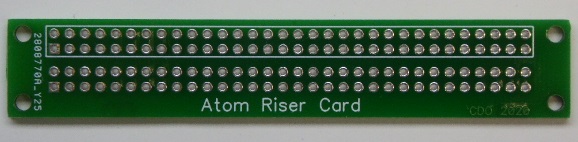

Blank PCB
