TL866 Adapter

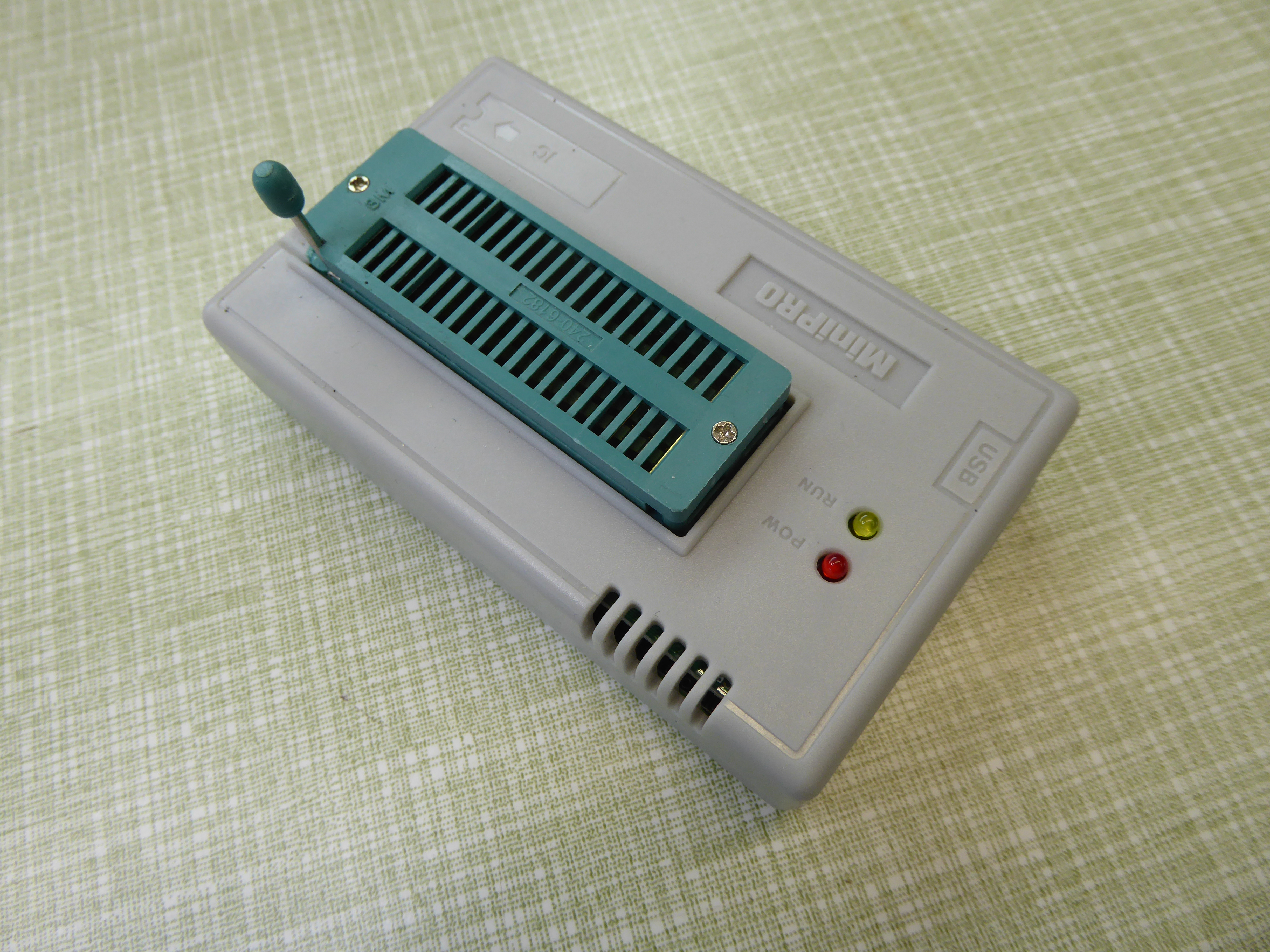

TL866CS EPROM programmer - well priced little programmer has a couple of issues: low Vpp voltage and can't program 2732's so I built an adapter to fix this.

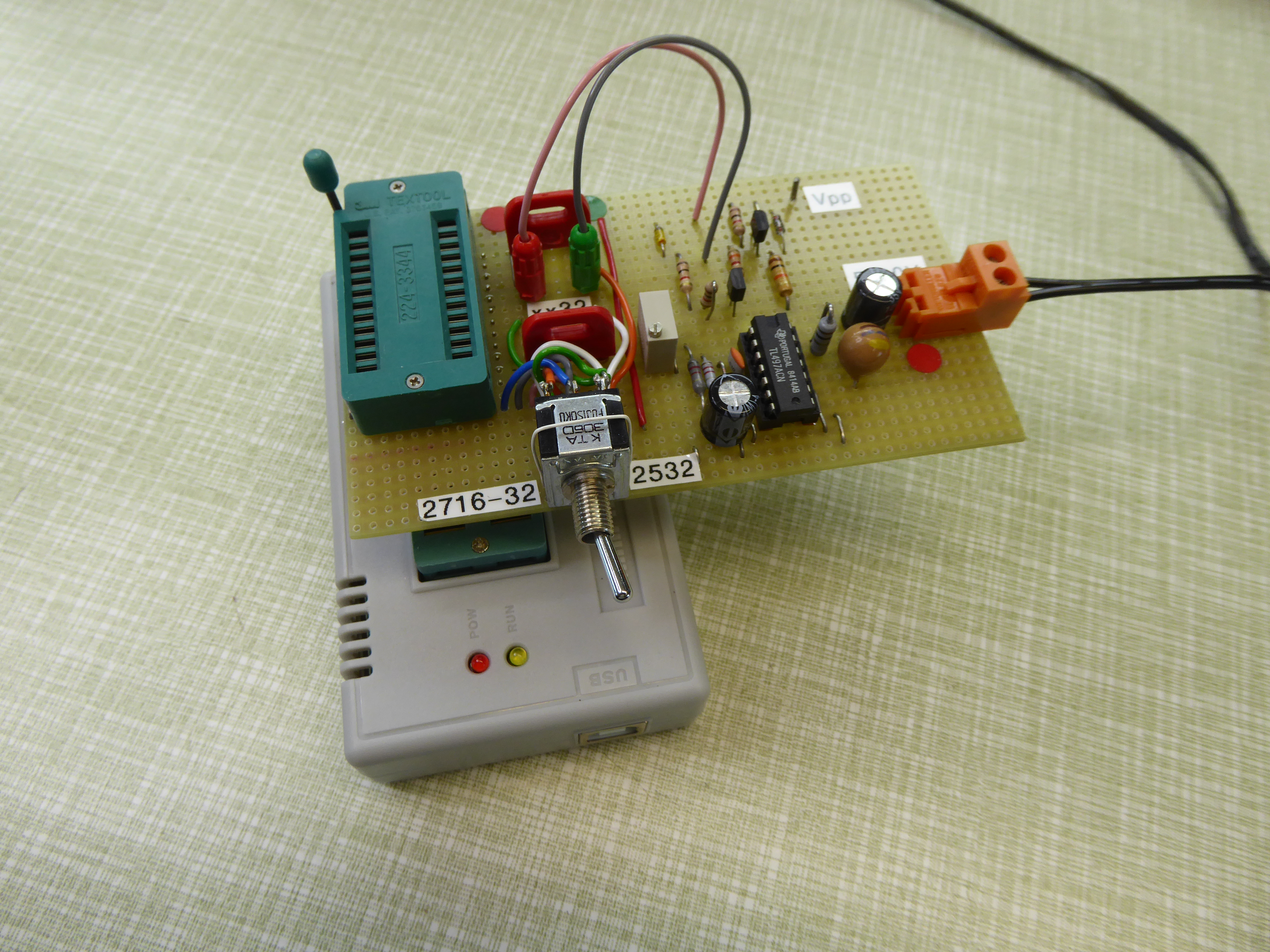

TL866 ProgrammerTL866 Programmer with AdapterTL866 Programmer Adapter

I can switch between 2716/2732 and 2532, an onboard switch mode PSU generates the 25V Vpp which is automatically switched in when the TL866 Vpp is active.

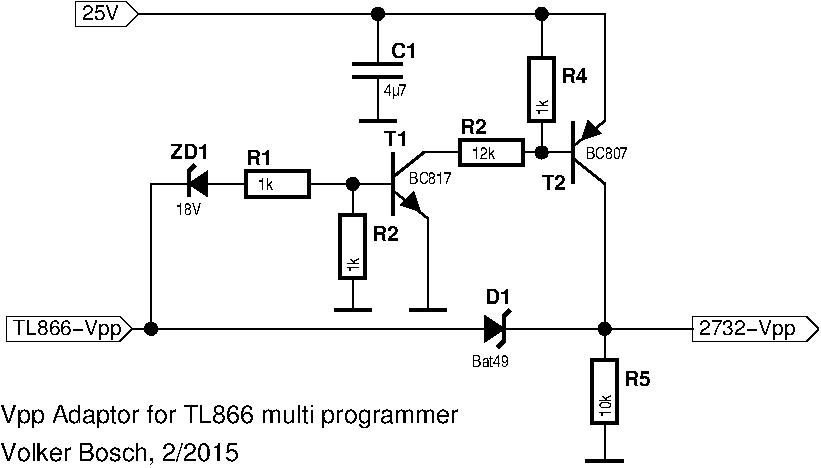

The circuit is based on a design by Volker Bosch:

TL866 Programmer Adapter Schematic

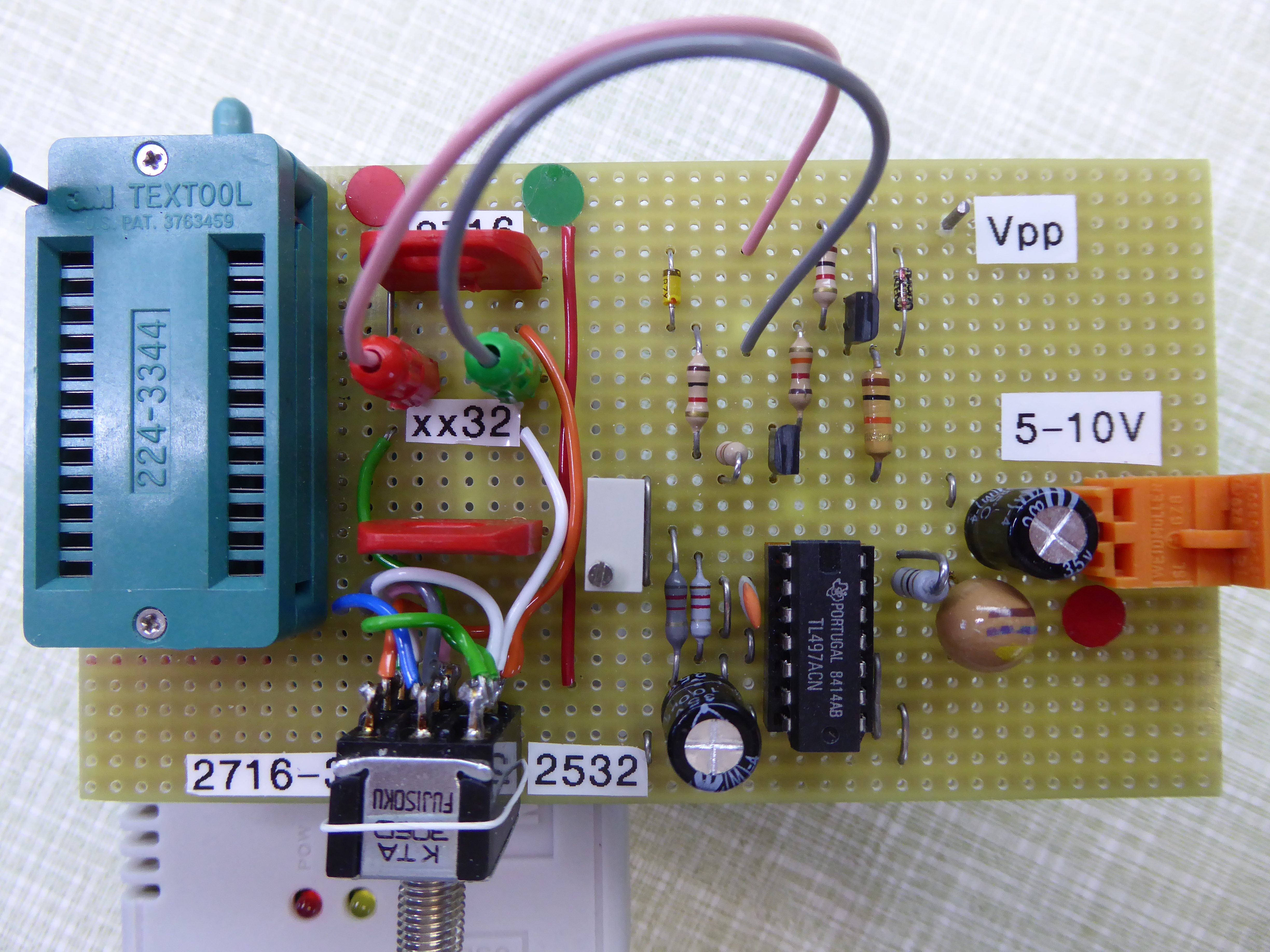

Here's a DIPTRACE schematic of my circuit as built on Veroboard in the photo.



I've now designed an improved version with a PCB, this just has a rotary switch to select between the three EPROM types (2716/2732/2532) rather than the confusing links.



2532-2732 Programmer Adapter



2532-2732 Programmer Adapter
