CUBIO has four 40-pin sockets which can be configured to hold a range of PIA devices - Rockwell 6520, Motorola 6821 or Rockwell 6522.
Schematics:
CUBIO Schematic [6].pdf
Documentation:
CUBIO Technical Manual [6].pdf

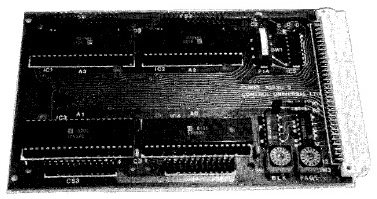

Photos:
