System Backplanes

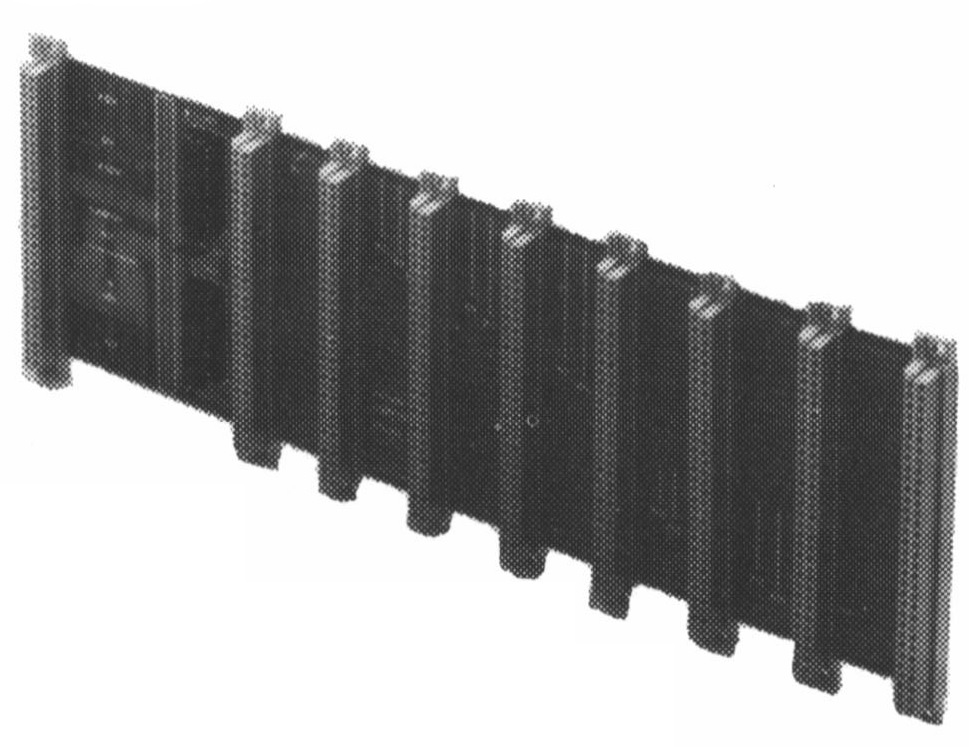

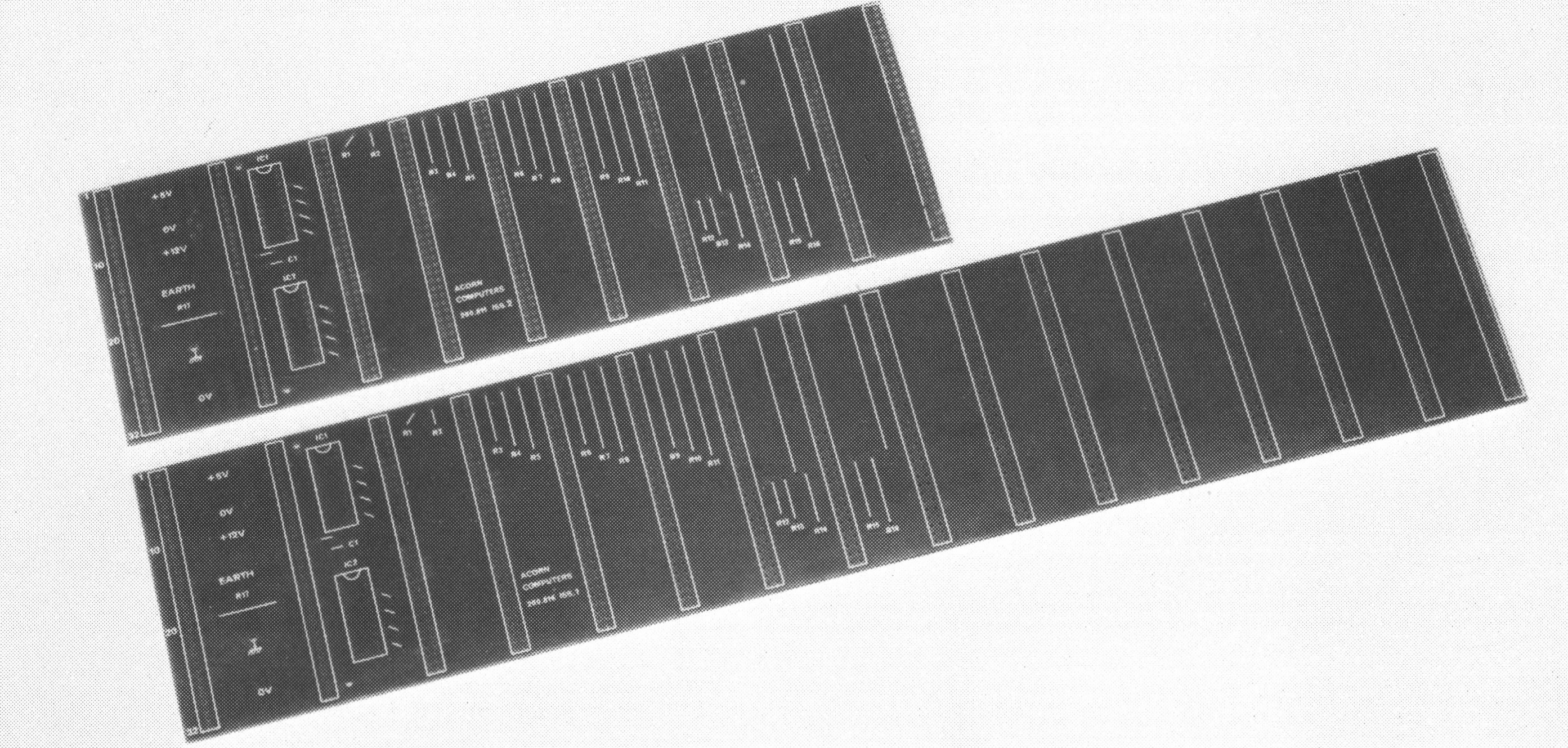

"Acorn have two back­planes to interconnect their range of Eurocards with DIN 41612 Connectors. An 8 location backplane is in System 2 and 3 and a 14 location backplane for System 4.

The backplanes are single sided PCB's with provision for 64-way sockets. Side A (the standard Acorn bus) is connected by copper tracks along the length of the PCB and side B is connected by wire wrapping to configure a system for interrupts, cassette interfaces etc.

Both the backplanes have locations for two buffers on the processor address lines and power-supply connectors if required. The backplanes are suitable for 6502 or 6809 based systems."

Schematics:

I have no original Acorn schematic however I have produced a DIPTRACE version of the 8-slot Backplane Backplane 8-Slot Buffered

Documentation:

• see Expanding Acorn Systems

• or see the System 2 Technical Manual

• or see this section from the System 5 Manual System 5 Handbook Part 2 Section 1 Rack, PSU and Backplane [2]

Photos:

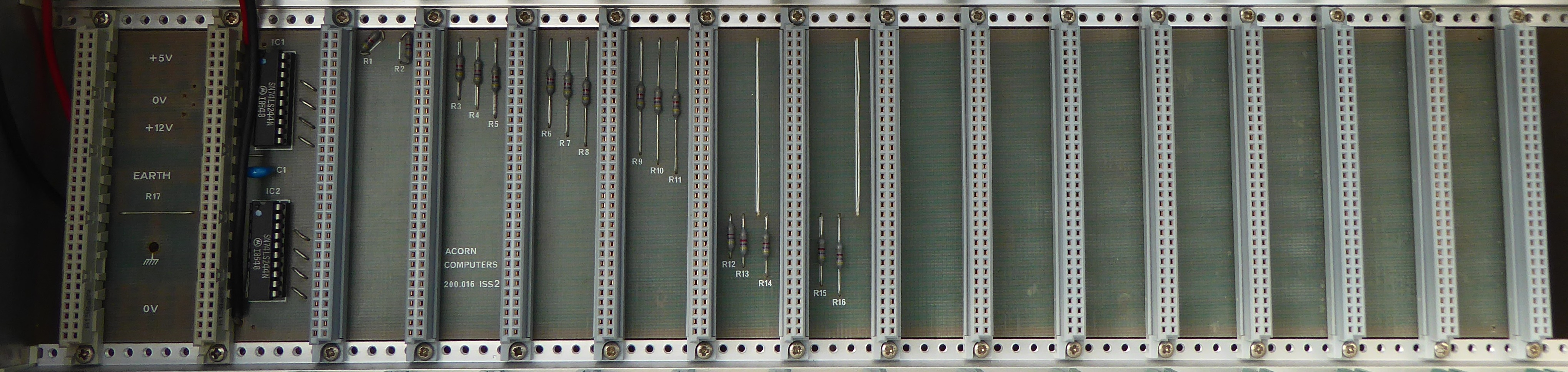

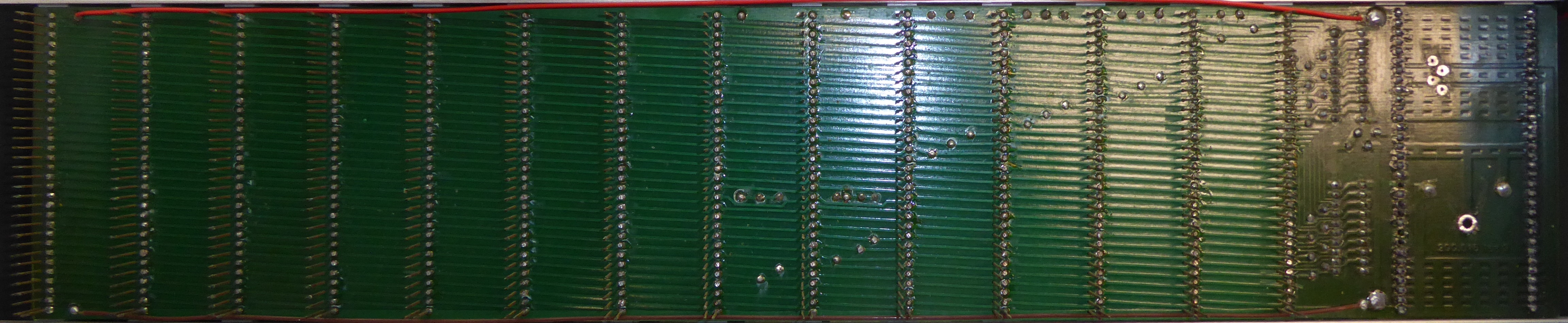

14-Slot Backplane 200.016 Issue 2 [0]

Replica Boards:

I have made replicas of Acorn backplanes details of which can be found here:

• Replica Backplanes
